Working on a Crank Cam Mechanism

Wed, 26 Sep 2018

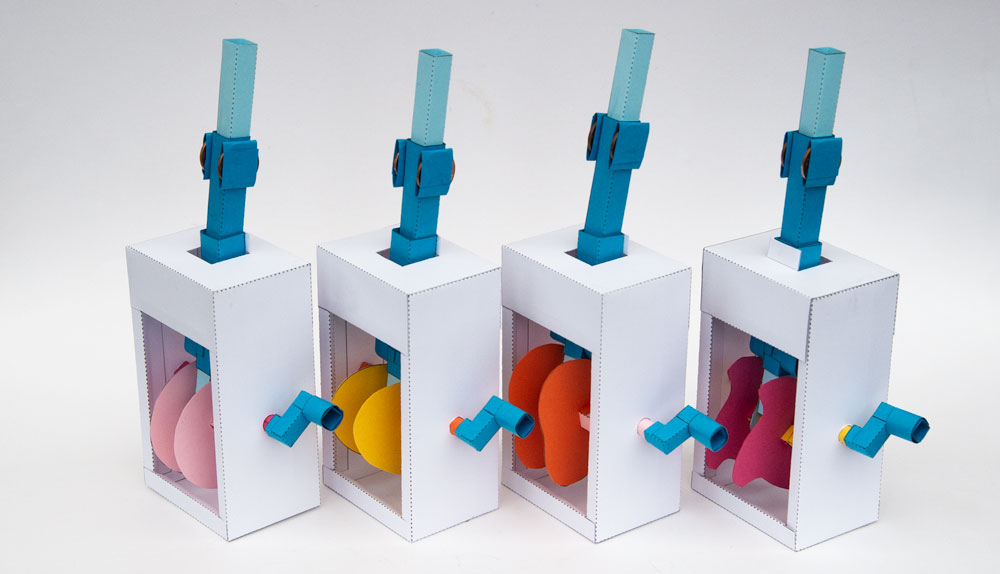

In the process of putting together the crank/cam mechanism mentioned in the last post I’ve decided to add options to use a variety of different cams. Behold! Four mechanism with cams ranging from one to four lobes.

Here they are fitted into boxes and ready for action.

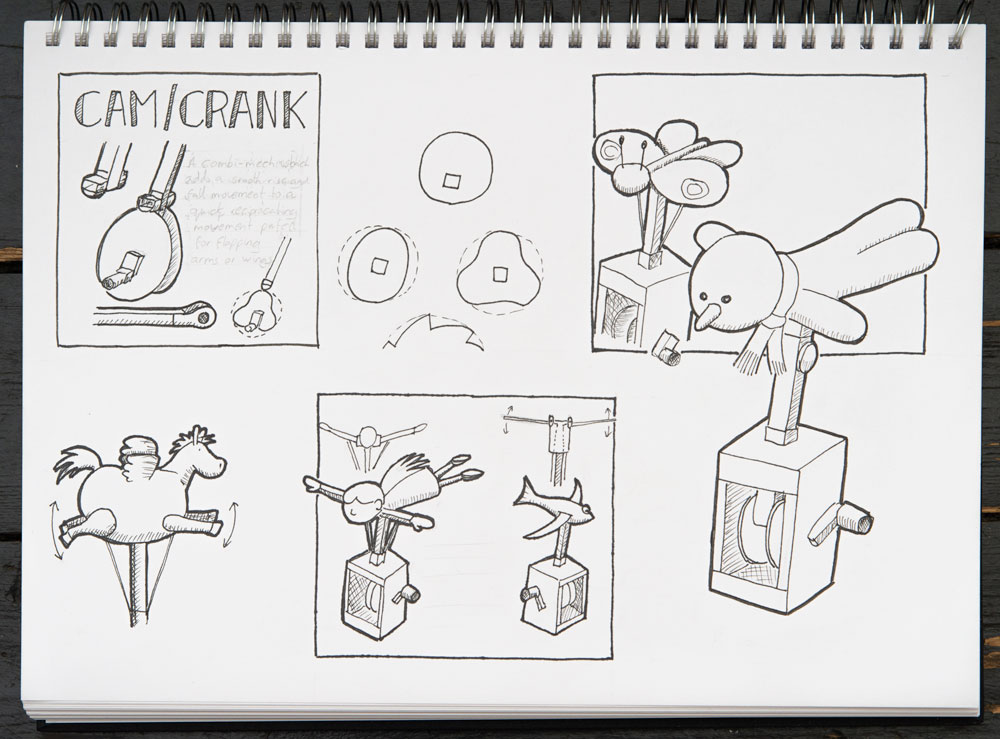

As part of the pack, which will be an Essential Mechanism project I’m also putting together a few ideas for how the mech might be used. I’ve done the inking, I’ll be adding colour and text to finish it off.
