Stegosaurus Prototype

Tue, 27 Sep 2016

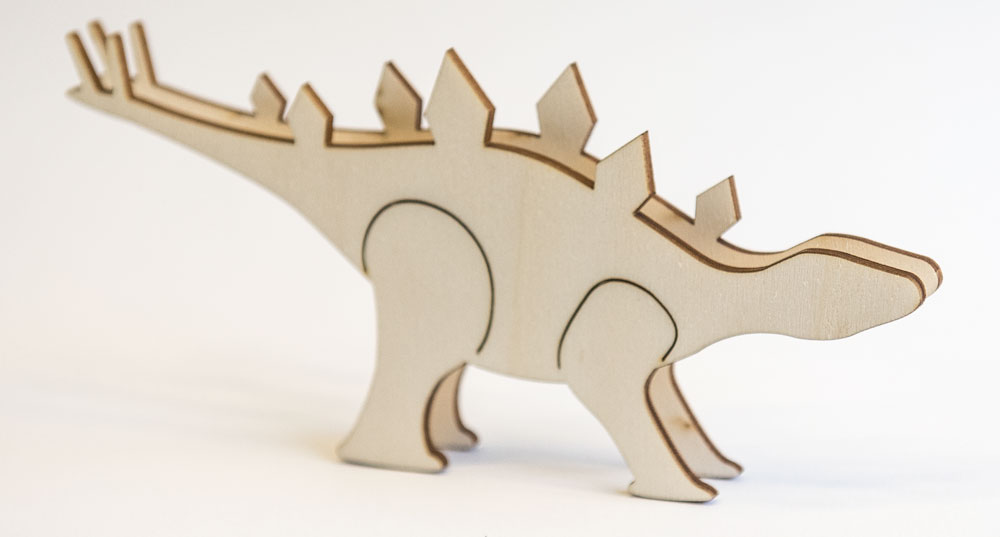

Experiments with laser-cut stegosaurus. The first draft is super simple, just two pieces held slightly apart with a blob of blu-tac. The leg shapes showing on the body are actually a cut lines.

steg-a07

In the second version, the body is made from three layers. I’ve changed the leg cut lines to a dashed cut line for alignment and then made the legs themselves as separate items.

steg-a04

In the current iteration of this model the parts are glued together. This might change in later versions. I’m going to experiment with a slot-together version like the reindeer model.

steg-a05

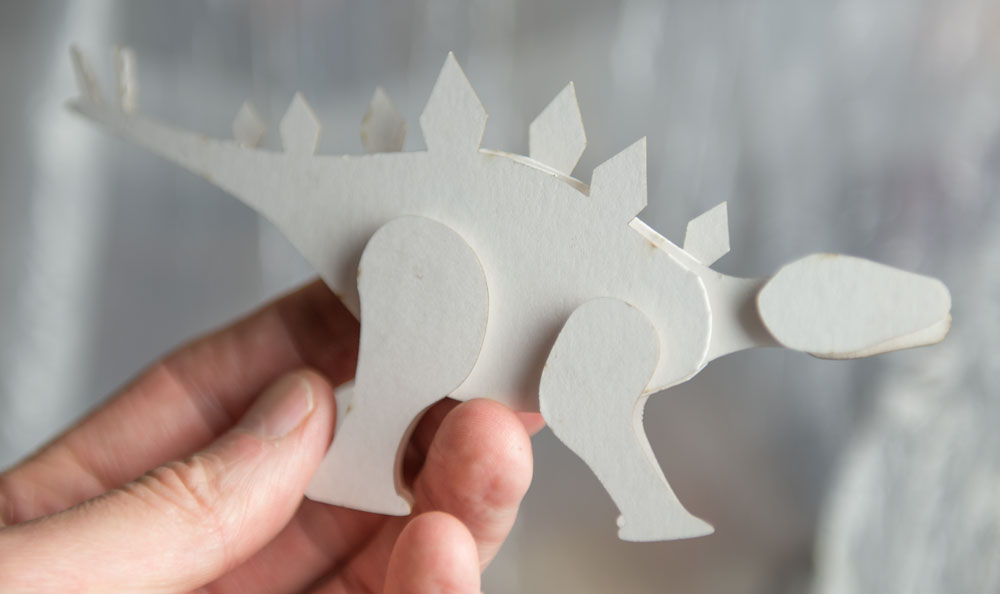

The model also works quite well thick card which could come in handy in the future.steg-a02

Here’s the progress-so-far version.

steg-a01
