Peaucellier – the straightest line

Sun, 19 Jun 2011

Invented in 1864 the Peaucellier linkage (poo-selli-yeah) linkage was created as a way of making straight line from circular motion. It was used in steam engines to control valves without the need to guides. The peaucellier linkages, invented by, you guessed it, monsieur Peaucellier, is mathematics in motion. The four red parts are all the same length, the circle radius is the same as the green link and the two yellow linkages are the same length.

No iFrame ‘;
print ‘
Using HTML 5 ‘;
}
else{
print’

‘;
print ‘
Using Flash’;
}
?>

As long as these ratios are adhered too, the grey dotted motion line will be straight.

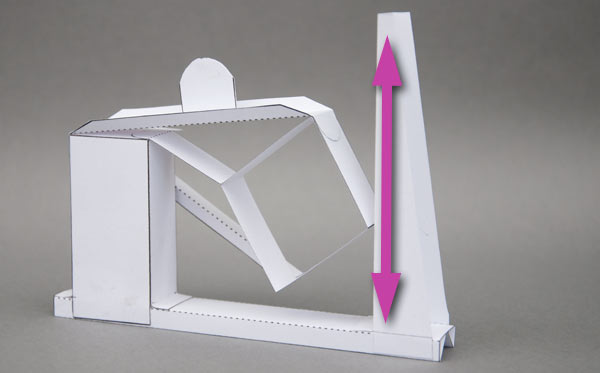

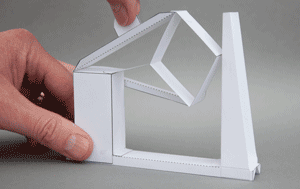

I've been helping #1 Son with his mathematics revision so I've been in a geometrical frame of mind. Inspired by the maths, here's my paper version of the Peaucellier linkage. The end of the linkage moves up and down maintaining the same distance from the vertical bar with the arrow on. Animation below.

I'll be doing this as a download then I'll have to find a use for it in a model. Something that moves up and down in a straight line. A meerkat? Groundhog?

  To receive new blog posts by email

Comments (4)

  • Andy from Workshopshed June 20, 2011 at 7:23 am

    The Peaucellier linkage is

    The Peaucellier linkage is one of many such things dicussed in the book "How round is your circle"

    See: http://www.howround.com/

    • robives June 20, 2011 at 10:07 am

      Ooo! Looks good!. Got mine

      Ooo! Looks good!. Got mine ordered from Amazon.co.uk

  • umehta June 21, 2011 at 1:48 pm

    Or a leaping frog?

    Or a leaping frog?

  • james johnson August 13, 2011 at 9:08 am

    description is rotary to

    description is rotary to linear motion which the model does not exhibit.



    suggest http://kmoddl.library.cornell.edu/resources.php?id=1954 for minor mod of the linkage to demonstrate the conversion.
