Guard Dog Prototype

Sat, 2 May 2015

Here’s a thought. A barking dog would look better than a nodding dog. With that in mind I have made some modifications to the nodding dog model that I made with the Eclips2 paper cutter

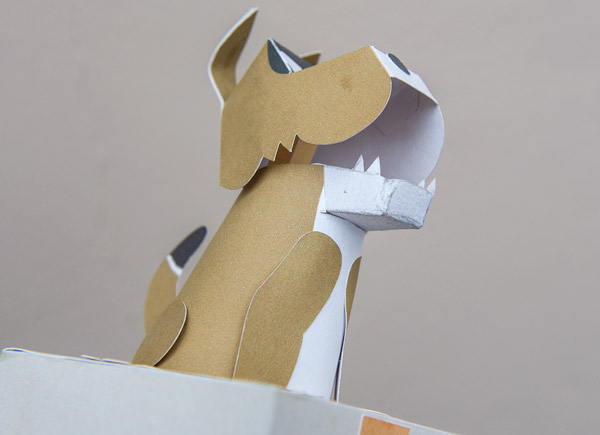

Here’s the prototype. I’ve cut away the body and recessed the lower jaw into the slot. The lower jaw will remain stationary while the upper jaw moves up and down.

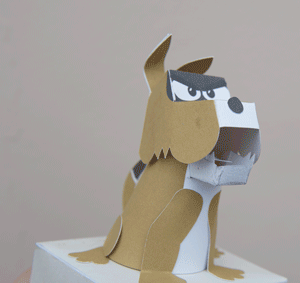

Here’s the movement in action. Looks promising I think.
I’m planning on releasing the final as both a normal download-cut-out-and-make kit as well as an svg file for those of you with cnc paper cutters.

  To receive new blog posts by email

Comments (2)

  • umehta May 2, 2015 at 9:44 pm

    A nice variation – may be one

    A nice variation – may be one more cam profile would be nice too – two short barks and a small pause and then bark again.

  • jackz May 3, 2015 at 7:06 pm

    You could put in some kind of

    You could put in some kind of bellows in to make a realistic barking sound.
