S/stan reminded me about the Curious Cuckoo Whistle which I had originally posted on Flying Pig website some time ago. Flying Pig is now entirely dedicated to printed material so I thought that I'd dust off the file and add it to robives.com.

The curious cuckoo whistle is a real novelty in paper engineering. A simple box shaped whistle that produces two distinct notes. The pitch is changed simply by touching the sides of the box.

The file is available for everyone to download for free. Just click on the link. Print the single page out onto thin card (230 micron, 230 gsm) score along the dotted lines then carefully cut out the parts. Accuracy is important on this project, if the parts are mis-aligned or there are holes in the box it probably won't work.

Fold up and glue together the box…

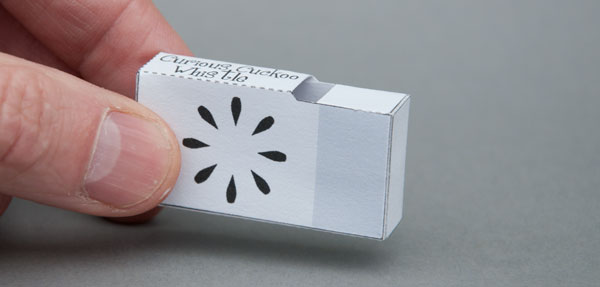

…and glue the tab down

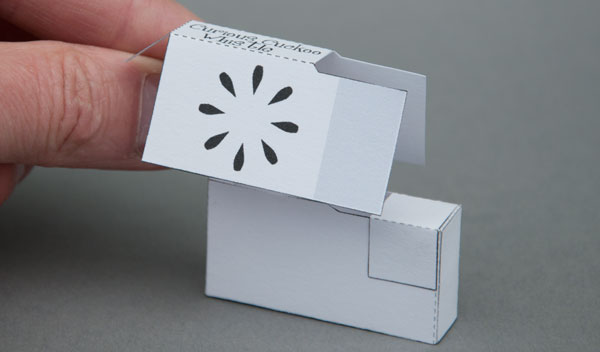

Glue the sides of the box over the top of the box making sure that the parts are aligned.

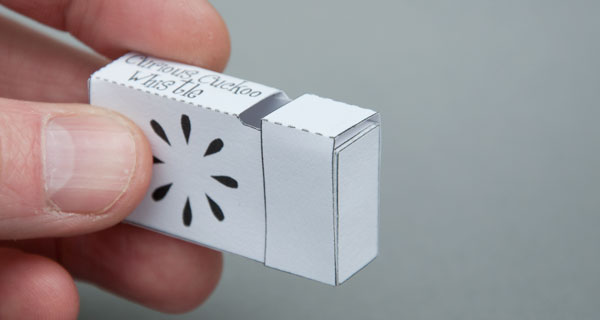

Glue the saddle into place lining it up with the edge and the base of the box

Let the glue dry completely.

To use the whistle hold it top and bottom between thumb and forefinger of one hand. Touch the burst pattern on the side with finger and thumb from the other hand to change the pitch.

I'm not sure how it works. Anyone got any ideas?

  To receive new blog posts by email

Comments (10)

  • frankenpaper May 20, 2011 at 11:49 pm

    I love how you get 2

    I love how you get 2 different tones from 1 whistle. And it's pocket size.

    • James.hutchinson2 May 21, 2011 at 7:15 am

      myne doesnt work!!

      myne doesnt work!!

      • littlecandyberry March 20, 2012 at 1:48 am

        Mine doesn’t blow correctly

        Mine doesn't blow correctly as well. I made sure everything was correct, though.

        • frankenpaper March 20, 2012 at 1:53 am

          I found this to be a

          I found this to be a challenging build myself. But I printed out another one and that one worked for me. It seems that if something is just a little bit off, it won't work properly. For me, even with practice (including my own designs) whistles only work right about 70% of the time. Patience and persistence is your best friend here.

          Thanks for your help there Frankenpaper 🙂 – RI

          • littlecandyberry March 20, 2012 at 2:30 am

            Oh yay thank you!
            I tried

            Oh yay thank you!

            I tried again and it worked!

            YAY!

  • Anonymous May 21, 2011 at 9:14 am

    every time I try to download

    every time I try to download something that's for free and click the add to cart button nothing happens. If I try to checkout, it says that my emailadress is already used bij someone who has a account on this site but I deleted my account 4 months ago. what should I do to still get the template

    • robives May 21, 2011 at 5:32 pm

      James: Did you use card and

      James: Did you use card and white school glue? Make sure that there are no holes and that you construction is super-accurate.

      Anonymous, drop me an email and I'll email the model too you.

      • Anonymous May 22, 2011 at 1:11 pm

        How to download??

        How to download??

        • robives May 22, 2011 at 2:14 pm

          “How to download??” Click on

          "How to download??" Click on Add to Cart then checkout for a free download!

  • scienceutsav February 11, 2014 at 6:46 am

    How to download the template,
    How to download the template, I am not getting any ??
    Please help.

    Click on Add to Cart at the top of the page. If that still doesn’t work drop me an email and I’ll be happy to send it to you direct- RI
