Cupid, progress report

Mon, 3 Feb 2014

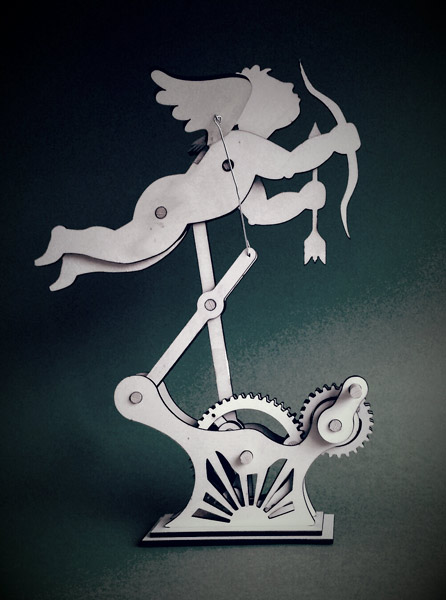

Laser Cut Cupid – almost done! It works nicely but there are a couple of small changes I still need to make. Looks good though doesn’t it!

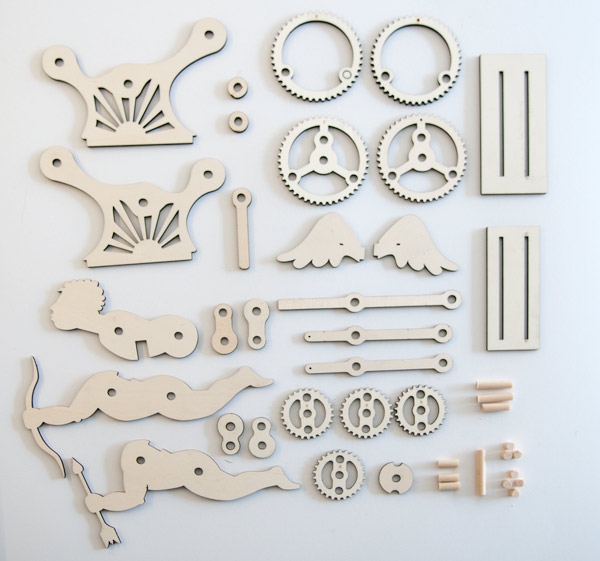

Here are the parts ready to go. I’ll need to re-do this picture as I am removing the cut-out on the shoulder of the body pieces.

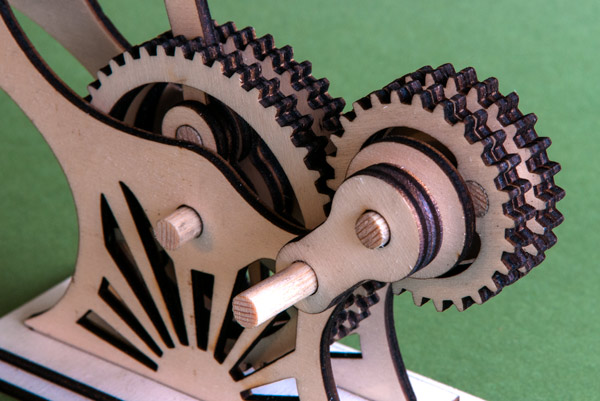

The gears run beautifully smoothly.

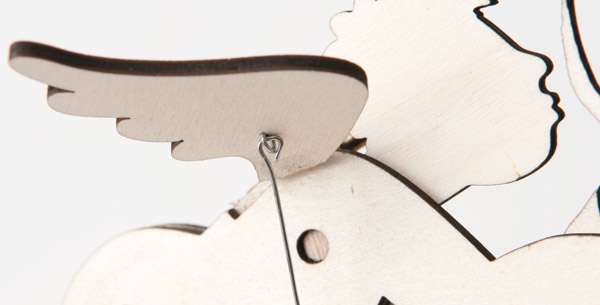

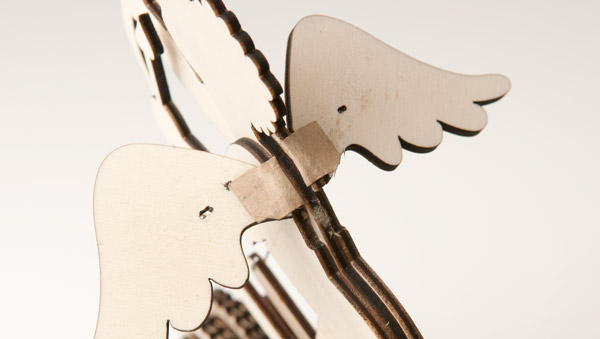

But the wing hinges spoil the model with their rather tatty look.


I’m planning to link the wings to the body using wire loops like the ones I’ve used for the push rods.
