Worm Gear Design

Tue, 3 Jul 2018

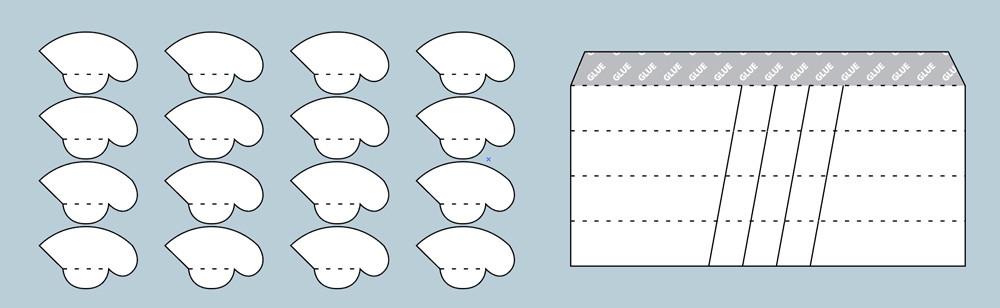

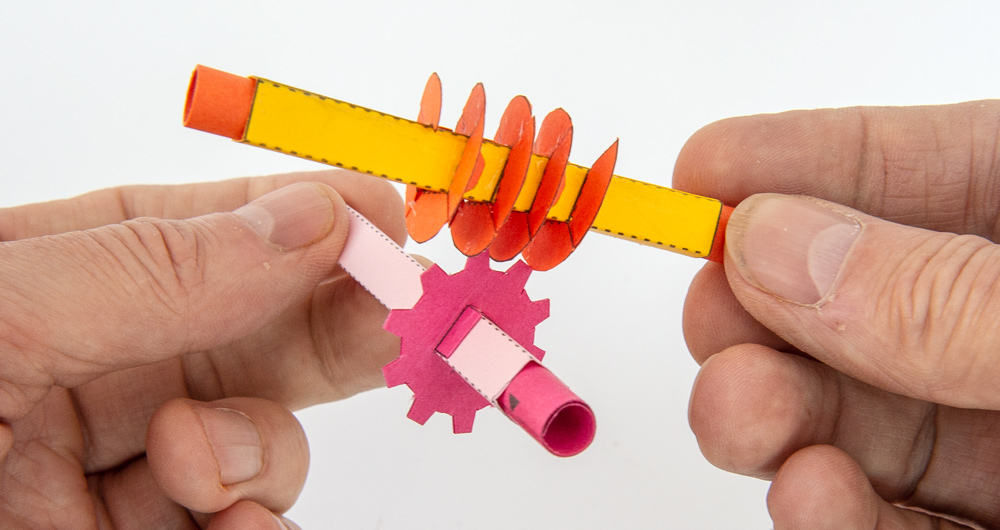

I have a couple of paper worm gear mechanisms on the site already but it is always interesting to try new ways of doing things. In this version the the worm section is made from quarter round pieces glued to the shaft then glued together where they overlap.

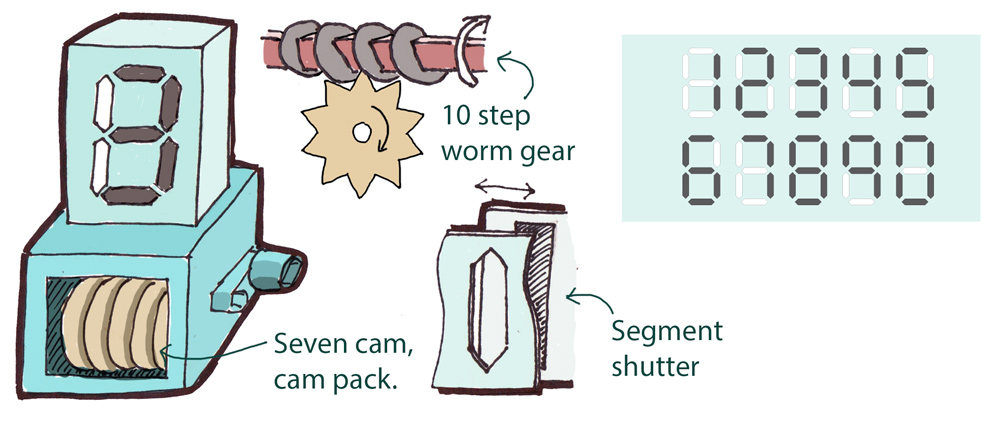

My plan is to then use the worm as a drive for a Seven Segment Display 🙂
