Three to One Reduction Gear – Coming Soon

Mon, 20 Oct 2014

I'm working on the latest in my Essential Mechanisms series. This time a 3:1 reduction gear.

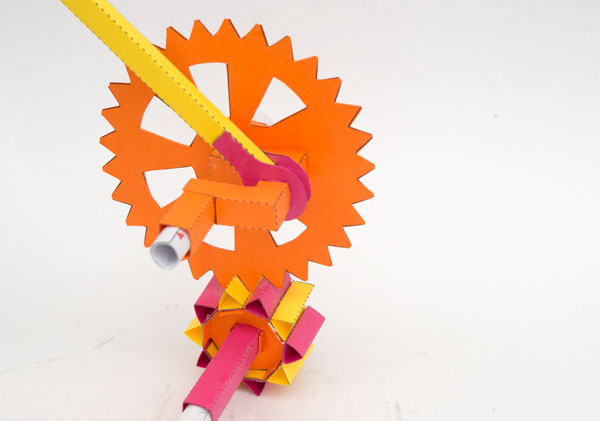

Rather than just reprising the 2:1 gear I wanted to add a little extra. To that end, the new mechanism includes a crank which can be used to drive your characters.

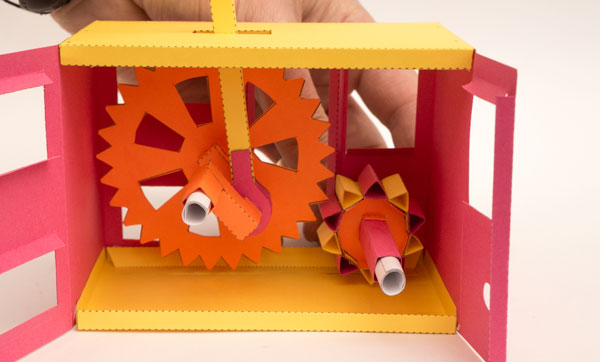

Here's the gears and crank fitted into a box and ready to go.

I have all the photography and parts layouts done so the finished project should be on the website very shortly.

Comments (2)

  • umehta October 20, 2014 at 1:36 pm

    It seems like a time to

    It seems like a time to re-think one of or perhaps both of dancing diplodocus with slightly a re-arranged style with this new invention.

    http://www.robives.com/blog/dancing_diplodocus_cam_powered_dinosaurs

    Nice idea! Thanks Umehta – RI

    • cool022883 October 20, 2014 at 6:36 pm

      it is a good idea
      just

      it is a good idea

      just remember the gears will turn in opposite directions

      Good point! – RI
