Piston Power

Sat, 14 Aug 2010

Experiments! I've been trying out mechanisms that use pneumatic power.

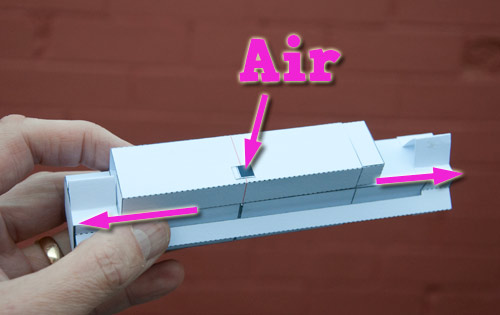

In this mechanism the top block with the air hole is a valve, below that are two opposing pistons.

The pistons move the valve, the valves move the pistons and so the whole thing goes back and forth – or that's the theory. Unfortunately is doesn't work. It is really close though. I reckon I need to make the air holes bigger, to let more air flow through.

So, I'll make some modifications and try another iteration.

  To receive new blog posts by email

Comments (1)

  • William Hornbaker August 18, 2010 at 11:42 pm

    Gemiine ‘talcum podwer’ make

    Gemiine 'talcum podwer' make an excellent lubricant for sliding paper surfaces without staining the paper in any way!

    A diagram of the valves and piston as to how it is laid out might bring forth some suggestions as to modifications.
