Paper Safe – further progress

Wed, 22 Feb 2012

The three rotor mechanism is shown here fitted into a box. The top part of the box is a sliding sleeve which is free to move up and down over the top half of the mechanism's case.

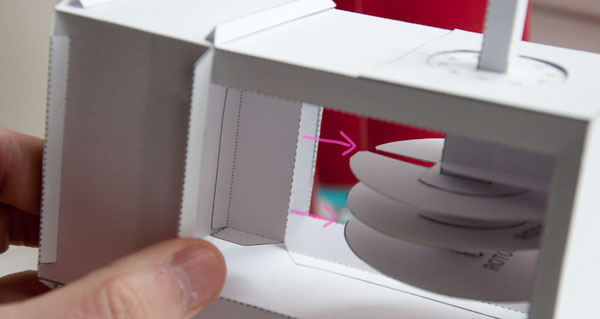

This blade, below, is part of the sliding sleeve. Wwhen the three rotors are aligned the blade slips into the slots in the rotors allowing the sleeve to move right down.

With the rotors unlocked the sleeve can slide right down to reveal a drawer.

Nearly done!

  To receive new blog posts by email

Comments (1)

  • exscaly February 23, 2012 at 10:20 am

    I love the drawer idea!
    Will

    I love the drawer idea!

    Will this be part of the Lock set, and will it be available if we bought it?

    Thanks 😀

    I’m not planning on making it part of the Locksmith set but it will be free for members to download.- RI
