Paper Horn for Smart Phone

Tue, 9 Jul 2013

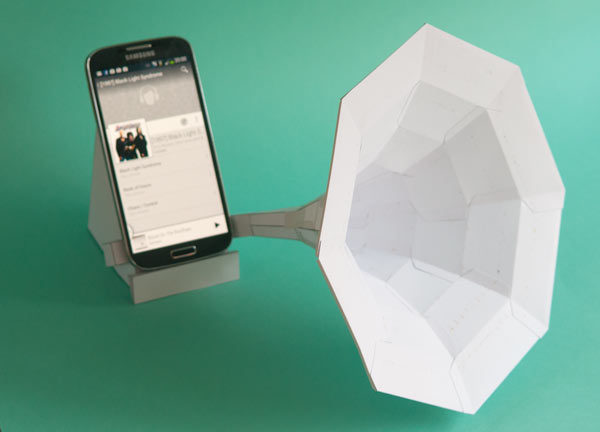

In one corner there's this paper horn just sitting there and in the other there's my shiny new Galaxy S4 smart phone. Looks like a match made in paper heaven!

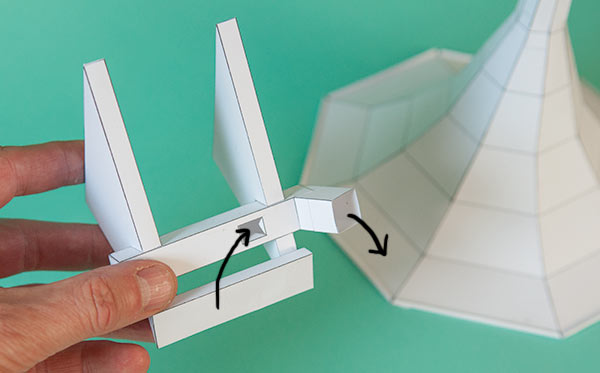

I've made a frame with a hole that lines up with the phone's loudspeaker. The other end of the tube accepts the horn.

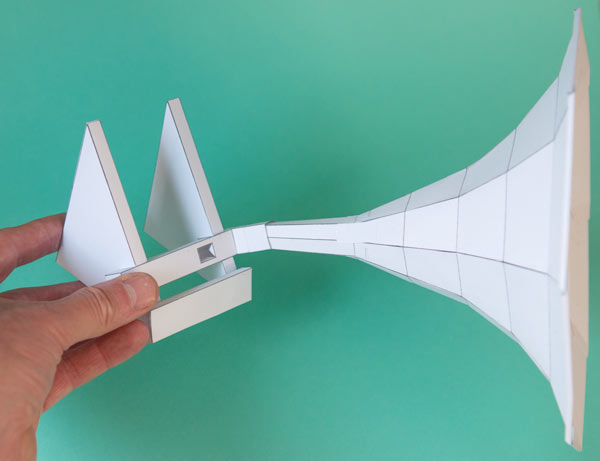

Here's the horn fitted into place.

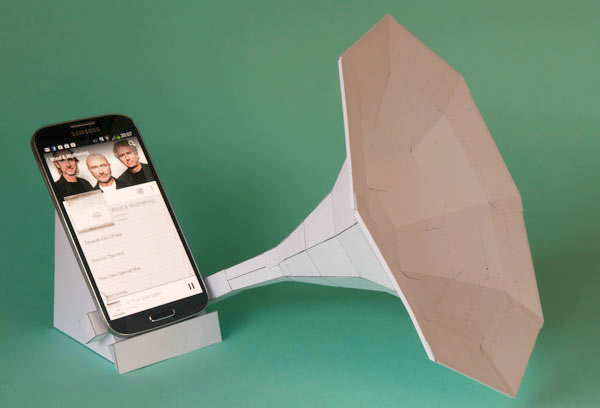

The phone sits on the stand with the loudspeaker over the inlet. Play some music and the horn gives the sound a lovely rich tone. It actually works! The only downside is that it would need a separate design stand for each type of phone. #1 Daughter and #truelove have iPhones and  #1 Son has a Galaxy S2. I'll see if I can create a download for those three phones at least. It'll look great with a bit of a Steampunk colour scheme!

Comments (5)

  • Megan July 10, 2013 at 1:33 am

    All you need now is a

    All you need now is a clockwork dog : )

  • Simon68 July 10, 2013 at 2:10 am

    Ah Ha!!
    Got a new toy

    Ah Ha!!
    Got a new toy Rob?
    Please, make one frame for those (poor guys like me) that have (the now old…) Galaxy S3 !
    Thanks

    🙂

  • Smelter July 10, 2013 at 3:42 am

    Nice to see Rob creating a

    Nice to see Rob creating a paper horn. Much easier to make than these offerings in Brass, Wood and Bamboo:-

    DIY Steampunk-Style iPhoneograph for iPhones or iPads

    http://www.treehugger.com/gadgets/diy-steampunk-style-iphoneograph-with-amazing-sound.html

    • Anonymous July 12, 2013 at 3:30 am

      i was hoping for for a

      i was hoping for for a gramophone model that you could put any mobile phone in with the top that flipped back on a hinge or something

  • Simon68 July 13, 2013 at 4:29 pm

    My Steampunk Copper colored

    My Steampunk Copper colored version of the horn…
    …and as I am a guy who respects the Intellectual Property Rights, here it is:
    3d printed Rob's site name.

    (the letters are, in fact, alphabet pasta, duly painted!).

    The project is not finished yet. I'm working on a cardboard cabinet to support this wonderful piece…

    Oh wow, that it AWESOME! – RI
