Newton’s Cradle Parts Layout

Tue, 10 Nov 2009

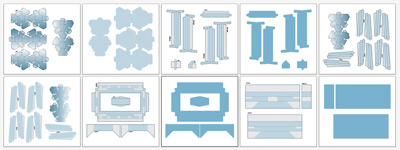

I've finished laying out the parts and assembly diagrams for the Newton's cradle model. I think that the project is now put to bed. Sleep tight!

  To receive new blog posts by email

Comments (3)

  • Roey November 11, 2009 at 3:30 pm

    hi there, Rob!
    it’s been a

    hi there, Rob!
    it’s been a while since i wrote here, though i’ve been visiting the pages regularly during the past few months.
    needless to say, this model looks great! i have one question, though – is the lower left corner page supposed to be the backgroung for the upper right corner page? if so, are the ball parts in it supposed to be painted light-blue, like the rest of the back ground pages?
    cheers (and don’t let the bad bugs bite)!

    • robives November 11, 2009 at 8:09 pm

      Hi Roey! Very nice to hear

      Hi Roey!
      Very nice to hear from you after all this time! I hope you are keeping well.

      The pages on the picture are top row, left to right then botton row left to right, front/back front/back so, yes, the second page is the back of the spheres. They don’t actually need any colour on them at all as that part will be inside the sphere. I just put colour on so that I didn’t have to explain why there is no colour!
