Wed, 19 Jun 2013
prototyperow

The mechanism from the last post fits nicely into the box and it works! Yay!

I've added cut away sides to the box because I think the mechanism itself is pretty and well worth looking at 🙂

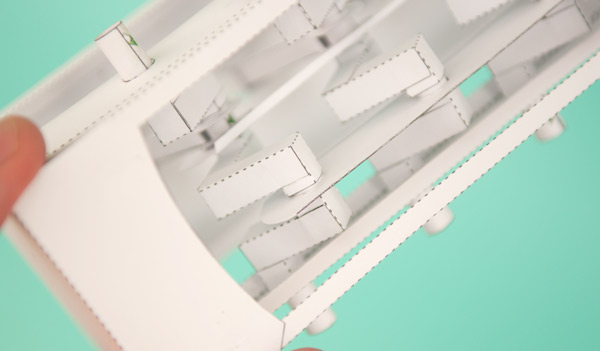

From underneath the full link bars are clear. Some size will need to me modified slightly, I'll probably space the three cranks slightly further apart. Apart for that I'm pleased with how things are progressing.

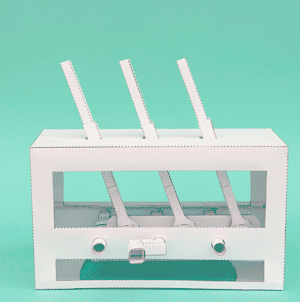

And here it is in all its animated glory. This is a twelve frame animation rather than the usual eight frame. It does smooth the motion out but makes the file larger.

I now need to fit a boat to the top with rowing characters in place. I'm quite tempted by the idea of a 'Ship of Fools'… Not sure yet.

  To receive new blog posts by email

Comments (11)

  • Smelter June 19, 2013 at 6:26 pm

    Ha ha, Rob is getting

    Ha ha, Rob is getting merry!

    Dream on.

    🙂 – RI

    • hugo leandro June 19, 2013 at 8:01 pm

      Fantastic, Rob! Before I

      Fantastic, Rob! Before I forget: row, row, row your boat, gently down the stream, merrily, merrily, merrily, life is but a dream. 🙂

  • Shelley Noble June 19, 2013 at 8:20 pm

    Utter and firm genius.

    That

    Utter and firm genius.



    That motion could animate so many different types of actions. I see a trio of tap dancers.

    That would be cool! I sometimes just just operate a mechanisms and look at it moving then try to imagine what would fit on the top of the mechanism. I’m sure it looks like I’ve gone off in a daze but I’m actually thinking hard. Honest. – RI

    • cool022883 June 20, 2013 at 7:02 am

      the canon site has a project

      the canon site has a project close to the idea Shelley  had the link to that project is here

      from the link click the 3d model tab then the name of the model is clowns on stilts line dance

      • umehta June 20, 2013 at 12:08 pm

        Clowns on stilts line dance

        Clowns on stilts line dance shown in circus-land has a rack and pinion and the movement seems flat. It is interesting but I guess Rob's mechanism is different in the sense that it has a different feel and can produce a different line-dance.

        Rob's is a totally innovative idea and has at least two possibilities – boat and dance.

        How about three chimpanzees dancing in a line, or if it is not appealing, rowing a boat?

        • Smelter June 20, 2013 at 12:33 pm

          Three Chimps. Hmm….

          Three Chimps. Hmm….

          • umehta June 20, 2013 at 3:03 pm

            Alright, how about penguins?

            Alright, how about penguins? Rob doesn't have a penguin in his collection (that is, I assume.)

          • Smelter June 20, 2013 at 5:54 pm

            Ah yes. Penguins!

            Ah yes. Penguins!  http://ftp.bauer-power.net/misc/papertux/penguin.pdf

          • umehta June 21, 2013 at 12:51 am

            It is a nice cute project but

            It is a nice cute project but does not seem like it is Rob's. Is it?

            I am wondering if three giraffes can dance instead – just thinking loud. It is up to Rob to decide.

          • robives June 21, 2013 at 6:59 am

            I’ll take photographs while

            I'll take photographs while I'm putting together the latest version of the mechanism and upload it as a project for members to download.

  • cool022883 June 20, 2013 at 4:07 pm

    maybe rob could just make a

    maybe rob could just make a post of just the mechanism then all of us could just create and add whatever character we wanted to the mechanism.
