Diver Design Update

Sun, 19 Aug 2018

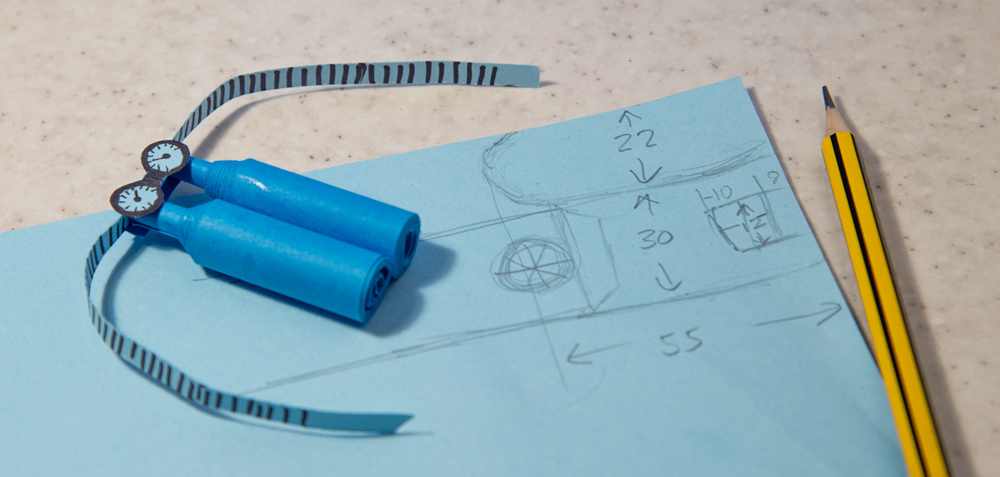

With a working mech and the tanks completed, I just need to add the body, arms and head. I sketched out the design of the body by eye then measured it up before transferring it to Illustrator.

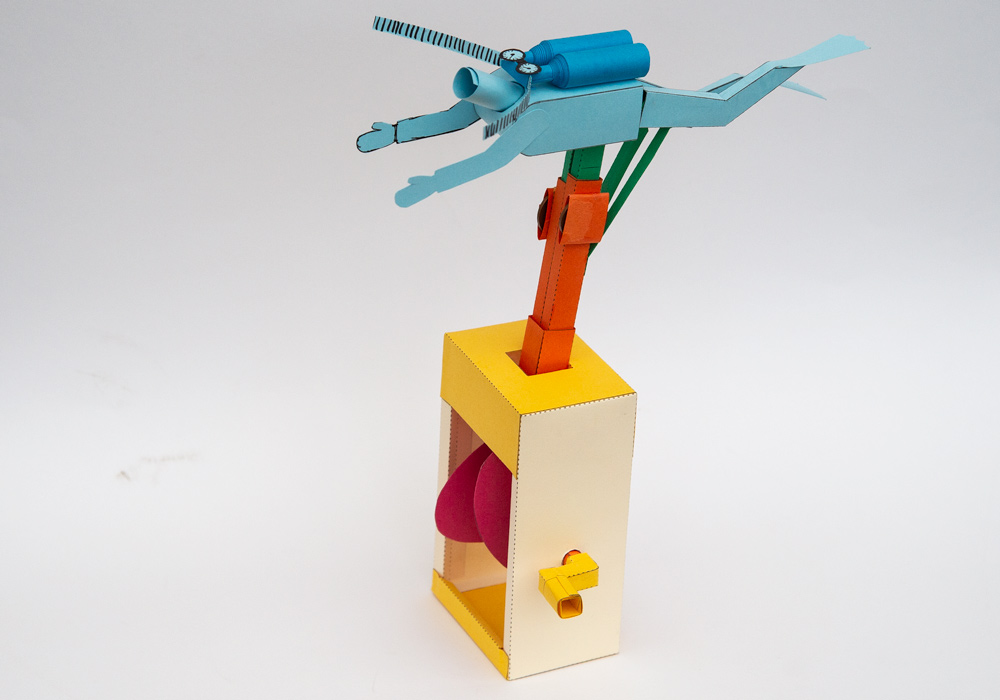

The body fits onto the green section of the main vertical shaft. I cut out the arms freehand and glued them into place. Similarly with the neck which is a push fit into a star-shaped hole in the body.

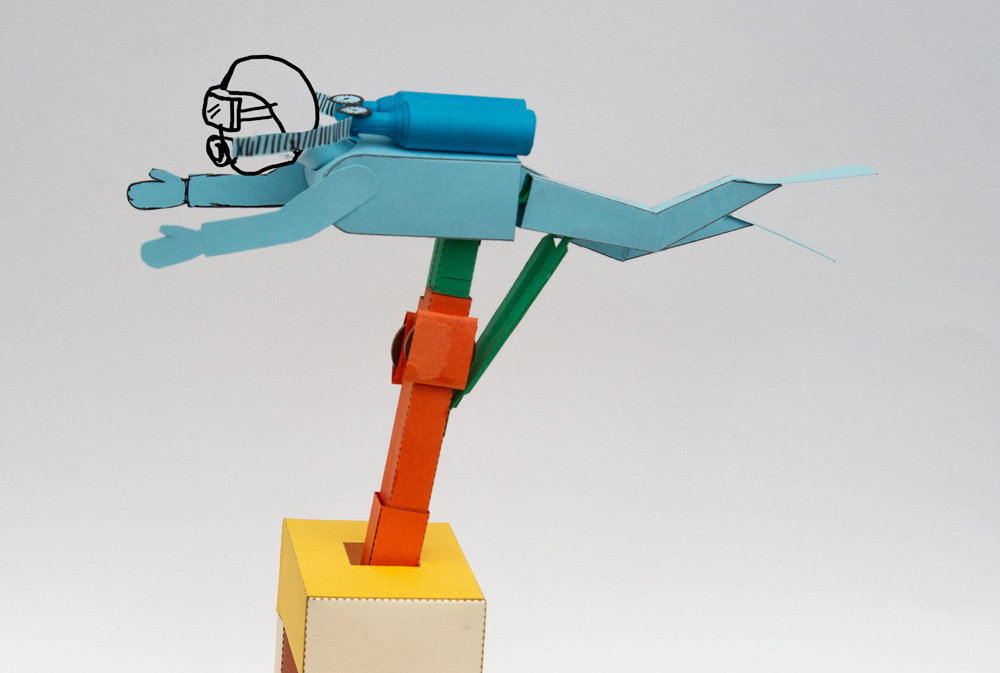

Final step of the design process, The head…
