Crank Mechanism for Caterpillar Model

Mon, 23 Mar 2015
automatacaterpillarcrankmechanism

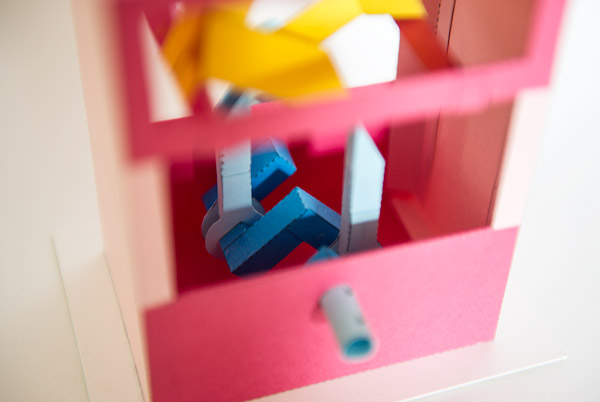

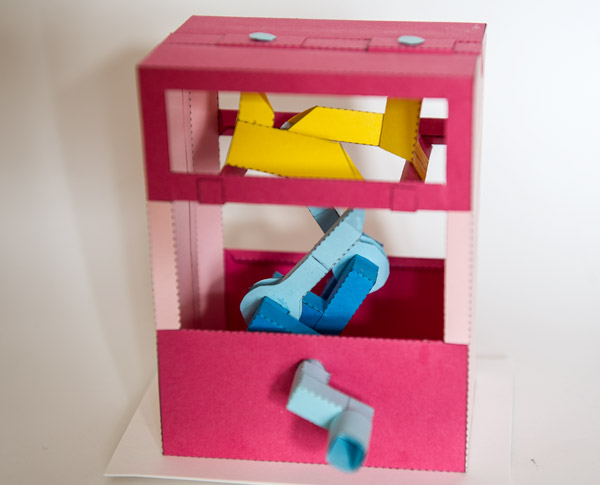

I’ve finalised the layout for the mechanims that will drive the caterpillar model. There are a few small changes that I have made to the original design including mounting the slider inside the box and adding windows to the to side of the box so that the bell cranks are visible.

Just the caterpillar to do!

Double crank mechanism for paper caterpillar. #papercraft #automata #crank #mechanism

A video posted by Rob Ives (@robivescom) on
