Better Late Bird Than Never

Fri, 6 Dec 2013

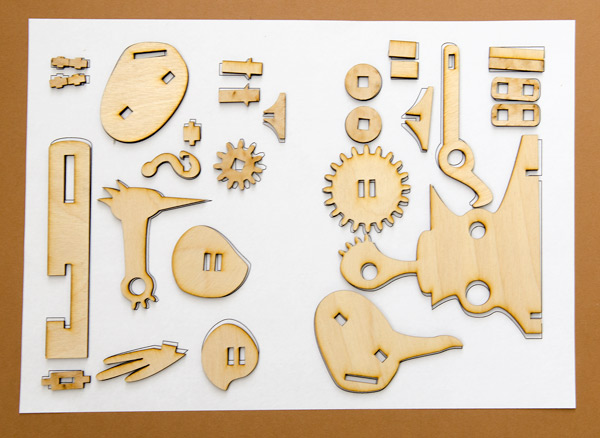

Those of you with a long memory may remember the Late Bird project I experimented with some years back. That project was based on plywood and was intended to be die cut. In the end the costs were just to high and the project never got off the ground. Meanwhile technology has moved on and the time has come to investigate laser cutters. I sent my friend Skeptical Tony the late bird pdf and he very kindly cut out the parts.


The original design needs some work but is promising. It was designed to be cut out from two sheets sheet of A5 sized 3mm ply. No dowels, no pins just the two sheets of die-cut ply. All the axles were square.


The cams slip onto the left hand shaft, one on this side, to control the worm that pops out of the ground, the other at the back which controls the bird.

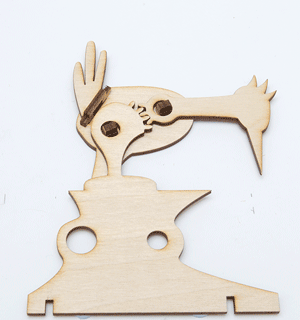

The inside of the bird houses a couple of sections of gear which mesh together and lower the head as the body drops.

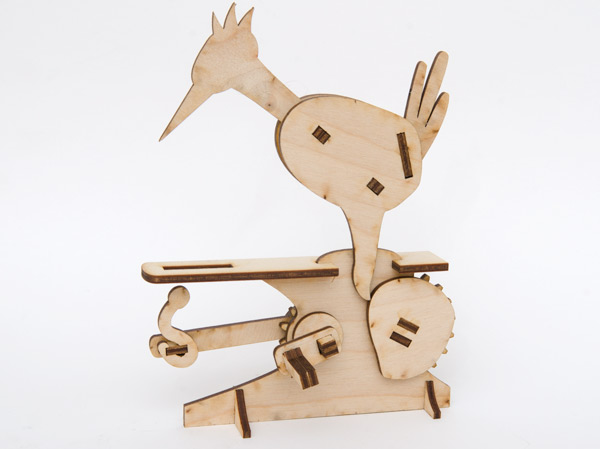

And there it is in all its laser cut glory! Looking, I think you’ll agree, rather splendid. As the main gear turns the worm comes up through the hole, the bird reaches down to catch the worm but the worm disappears just in time. Phew!

There are, as I said, a few problems. The gear teeth profiles are just plain wrong. They don’t mesh properly and the axle holes are slightly too far apart. Both easily solved. I’m not aiming to produce a flat pack kit any more so I’m not restricted to square pegs in round holes for axles. I can experiment with dowel or brass rod. Time for a mk ii.


**Edited to add this view of the other side of the Late Bird 15th Dec 2013 **

**Note that the lever with the worm on the end shares the same axle as the small gear but isn’t driven by it. **

Comments (7)

  • michael42er December 7, 2013 at 2:53 pm

    One of my favorites is still
    One of my favorites is still the paper model “early bird” of September 2011. This new laser-cut model I really like the design and function. But it is difficult for an individual with a template (must be a CAD file) to get a laser cut. Perhaps there is a set, which was manufactured in series?

    • umehta December 8, 2013 at 1:25 pm

      Perhaps a way is found to
      Perhaps a way is found to reduce part count to three or so…

  • trishjoyce December 8, 2013 at 4:37 pm

    wow a woody woodworm pecker

    wow a woody woodworm pecker ..

    i really like this one ..especially if your leaving the workings showing like that very neat..

    look forward to the next generation.T

  • cool022883 December 11, 2013 at 8:31 pm

    there seems to be alot of
    there seems to be alot of intrest in this model so i decided to try and make my own version out of paper using a bird from a model i got from a japanese site.i think it came out nicly so i posted a youtube video

    http://youtu.be/ShkRju-Pw4U

    • cool022883 December 15, 2013 at 9:11 pm

      oopps thought he was talking
      oopps thought he was talking about my model

  • John V. December 13, 2013 at 4:27 pm

    Very nice!  What does the

    Very nice!  What does the other side look like?  I'm having trouble visualizing what moves the bird's body.

    • robives December 15, 2013 at 8:46 am

      Hi John, I’ve added another
      Hi John, I’ve added another picture showing the other side of the Late Bird. Hope this helps .
